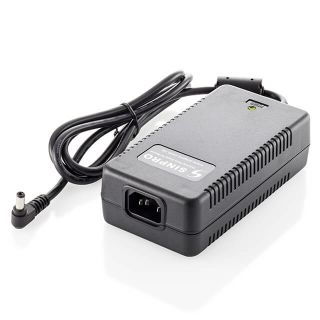

MPU64 Serie - Medizinische 63W Tischnetzeile von 5V bis 36V

MPU64 Serie - Medizinische 63W Tischnetzeile von 5V bis 36V

Artikelnummer: MPU64
HAN: MPU64
Kategorie: Tischnetzteile
Hersteller: Sinpro Electronics

The MPU64 series of AC/DC switching mode power supplies provide 63 Watts of continuous output power . All supplies are UL94V-1 min compliant. All models meet FCC Part-18, CISPR-11 and EN55011 class B emission Limits, IEC 60601-1-2:2014 and are designed to comply with UL/cUL, TUV T-mark and conformity assessment in CE marking. All units are 100% burned in and tested.

Spannung: 5V/45W

9V/58W

12V/63W

24V/63W

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 14 Tagen.

Beschreibung

Features

Wide Operating Voltage 80 to 275 VAC, 47 to 63 Hz
IEC-320-C14 Input Inlet
Single Output
Class I
Efficiency level V(MPU64-105~111)
Input to Output : 2MOPP
5 year warranty

Specification & safety report

Data Sheet(MPU64)

FCC

CEC(V)

TUV

CCC

Electrical characteristics

Efficiency: 85% typ.
Line Regulation: 1% max.
Load Regulation: 7% max.
Hold-up Time: 16mS min.
Output ripple and noise: 0.5% (Typ.).

Environmental

Operating Temperature: -10 to 70°C
Derate linearly from 100% load at 50°C to 50% load at 70°C
(MPU102~104 from 100% load at 40°C to 40% load at 70°C)
Storage Temperature: -40~85°C
Operating Humidity : 0~95%
Storage Humidity: 0~95%
MTBF: 100,000 calculated hours

Model No.	Output Voltage	Max. Output Current	Total Regulation	Max. Output Power	Certificate
?MPU64-102	5VDC	9.00A	7%	45W	UL/cUL, CB, CE, FCC, CCC, TUV T-mark, PSE, RoHS2
?MPU64-103	7VDC	7.85A	7%	55W	UL/cUL, CB, CE, FCC, CCC, TUV T-mark, PSE, RoHS2
?MPU64-104	9VDC	6.44A	5%	58W	UL/cUL, CB, CE, FCC, CCC, TUV T-mark, PSE, RoHS2
?MPU64-105	12VDC	5.25A	5%	63W	UL/cUL, CB, CE, FCC, CCC, TUV T-mark, CEC-V, PSE, RoHS2
?MPU64-106	15VDC	4.20A	5%	63W	UL/cUL, CB, CE, FCC, CCC, TUV T-mark, CEC-V, PSE, RoHS2
?MPU64-107	18VDC	3.50A	5%	63W	UL/cUL, CB, CE, FCC, CCC, TUV T-mark, CEC-V, PSE, RoHS2
?MPU64-108	24VDC	2.62A	3%	63W	UL/cUL, CB, CE, FCC, CCC, TUV T-mark, CEC-V, PSE, RoHS2
?MPU64-109	30VDC	2.10A	3%	63W	UL/cUL, CB, CE, FCC, CCC, TUV T-mark, CEC-V, PSE, RoHS2
?MPU64-110	36VDC	1.75A	3%	63W	UL/cUL, CB, CE, FCC, CCC, TUV T-mark, CEC-V, PSE, RoHS2

Service:	5 Jahre Bring-In-Service
Artikelgewicht:	0,56 kg
Abmessungen(LxBxH) ( Länge × Breite × Höhe ):	14,60 × 7,60 × 4,30 cm
