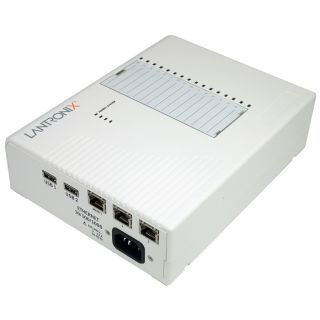

Lantronix EDS-MD - 4 Port Medical Device Server

Lantronix EDS-MD - 4 Port Medical Device Server

Artikelnummer: EDSOR04P-01
HAN: EDSOR04P-01
Kategorie: Serielle Geräteserver
Hersteller: LANTRONIX

UL and IEC-60601 compliance provides galvanic port isolation to protect connected medical devices
Securely connect any medical device with a serial interface to the network using enterprise-level SSL and SSH
Simple set up and configuration with industry-standard management tools including Web, CLI and XML
Gigabit Ethernet offers increased bandwidth for higher performance
Available with 4, 8 or 16 ports

Portanzahl

1.100,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 30 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Beschreibung

Specifically designed for the medical industry, the UL and IEC-60601 compliant EDS-MD provides mission-critical device connectivity, allowing remote access and management of virtually any electronic or medical device.

EDS-MD boasts 4, 8 or 16 individually isolated RS-232 serial ports with a Gigabit (10/100/1000Mpbs) network interface. Going above and beyond the IEC-60601 requirement, EDS-MD provides galvanic isolation on all ports to ensure the highest levels of safety. If a grounding problem occurs, the operation of EDS-MD or other connected devices will not be affected.

With Lantronix’ proprietary Secure Com Port Redirector virtualization software, existing serial port applications can work with EDS-MD without any code modifications. Virtual COM ports can be mapped to EDS-MD and encrypted at both ends of the communication, allowing the transport of sensitive information to and from remote device servers over the Internet with the highest level of security.

Set up and configuration of EDS-MD is simple with industry-standard management tools including Web, CLI and XML.

EDS-MD – The Next Generation of Multi-port Medical Device Server

Standards

IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
USB 2.0

Hardware

600MHz ARM 11 processor
8 MB Flash
4 GB SD Card (internal only)
256 MB SDRAM
Real Time Clock with Battery back-up
Onboard Thermal Sensor

Physical Interface

4/8/16 RJ45 (DTE) Serial Connectors
RS-232 Interface
- Data rates – up to 921 Kbps
- ESD Protection – 15kV
- Circuit and port isolation – 1.5KVAC
2 USB Host ports – USB-A receptacle connectors
- Output Capability = 0.5A
- Circuit and port isolation – 1.5KVAC
1 Ethernet port – RJ45 connector^
- 10/100/1000Mbps
- Autosensing MDI/MDIX
- Full/half duplex
- Circuit and port isolation – 1.5KVAC
1 Reset Button

^ 2 additional Ethernet ports enabled with future firmware release.

LED Indicators

Power/System
Serial Ports (4, 8, 16)
Ethernet – Activity/Link

Physical Dimensions

Size: L x W x H
- 21 cm (8.25 in) x 19 cm (7.5 in) x 6 cm (2.4 in)
Weight:
- 16-Port = 0.9 Kg (2.0) lbs
- 8-port = 0.82 Kg (1.8 lbs)
- 4-port = 0.8 Kg (1.75 lbs)

Software

Windows XP / Server 2003 / Vista / 7 (32 bit and 64 bit ) / Server 2008 (32 bit and 64 bit) based DeviceInstaller™
Secure Com Port Redirector™

Security

SSL v3, SSH v2 Client & Server – up to 1024-bit certificates
Encryption: AES, 3DES, RC4
Authentication: SHA-1, MD5, Base-64

Management

Web Browser (SSL option for secure login)
CLI (over Serial Ports, Telnet or SSH)
XML Configuration Records via CLI or FTP

Environmental

Operating Temp: 0°C to +55° C (32°F to 131°F)
Storage Temp: -30°C to +80° C
Relative Humidity: 20% to 90% relative humidity, non-condensing
IP Rating = 20

Power

Input: IEC60320 C14 receptacle without a power switch
100-240 VAC, 50/60 HZ, 0.4A
Power Consumption: 23 Watts Max
Nominal Power: 12 Watts

Mounting

Wall mount
Desktop

Certifications

Emissions:
- FCC part 15 Subpart B
- EN 60601-1-2: 2007
- Industry Canada ICES-003 Issue 4 February 2004
- CISPR 22:2005 + A1: 2005 + A2: 2006 ITE
- CISPR 11:2003 + A1: 2004 + A2: 2006
- VCCI V-3/2010.04
- AS/NZS CISPR 22: 2009
- EN 55022: 2006 + A1: 2007
- EN61000-3-2: 2006 + A1: 2009 + A2: 2009
- EN61000-3-3: 2008
Immunity:
- EN55024 1998 + A1: 2001 + A2: 2003
- EN60601-1-2: 2007
- EN61000-4-2: 2009
- EN61000-4-3: 2006 + A1: 2008
- EN61000-4-4: 2004 + A1: 2010
- EN61000-4-5: 2006
- EN61000-4-6: 2009
- EN61000-4-8: 1994 + A1: 2001
- EN61000-4-11: 2004
Safety:
- UL 60950-1: 2nd edition; US Safety Standard for Information Technology Equipment
- UL 60601-1: 1st edition; US Safety Standard for Medical Electrical Equipment
- CAN/CSA-C22.2; No. 60950-1-07: 2nd edition; Canada Safety Standard for Information Technology Equipment
- CAN/CSA C22.2; No. 601.1: 1990; Canada Safety Standard for Medical Electrical Equipment
- IEC 60601-1: 1998 (2nd edition); International Safety Standard for Medical Electrical Equipment
- EN60601-1: 1990 (2nd edition) Medical Electrical Equipment –Part 1: General Requirements for Safety
- JIS T 0601-1:1999, Japan Safety Standard for Medical Electrical Equipment
Reach
RoHS

Warranty

5-year Limited

Netzteil:	Internes Netzteil
Spannungsversorgung:	230 V AC
Service:	5 Jahre Bring-In-Service
Abmessungen(LxBxH) ( Länge × Breite × Höhe ):	21,00 × 19,00 × 6,00 cm
